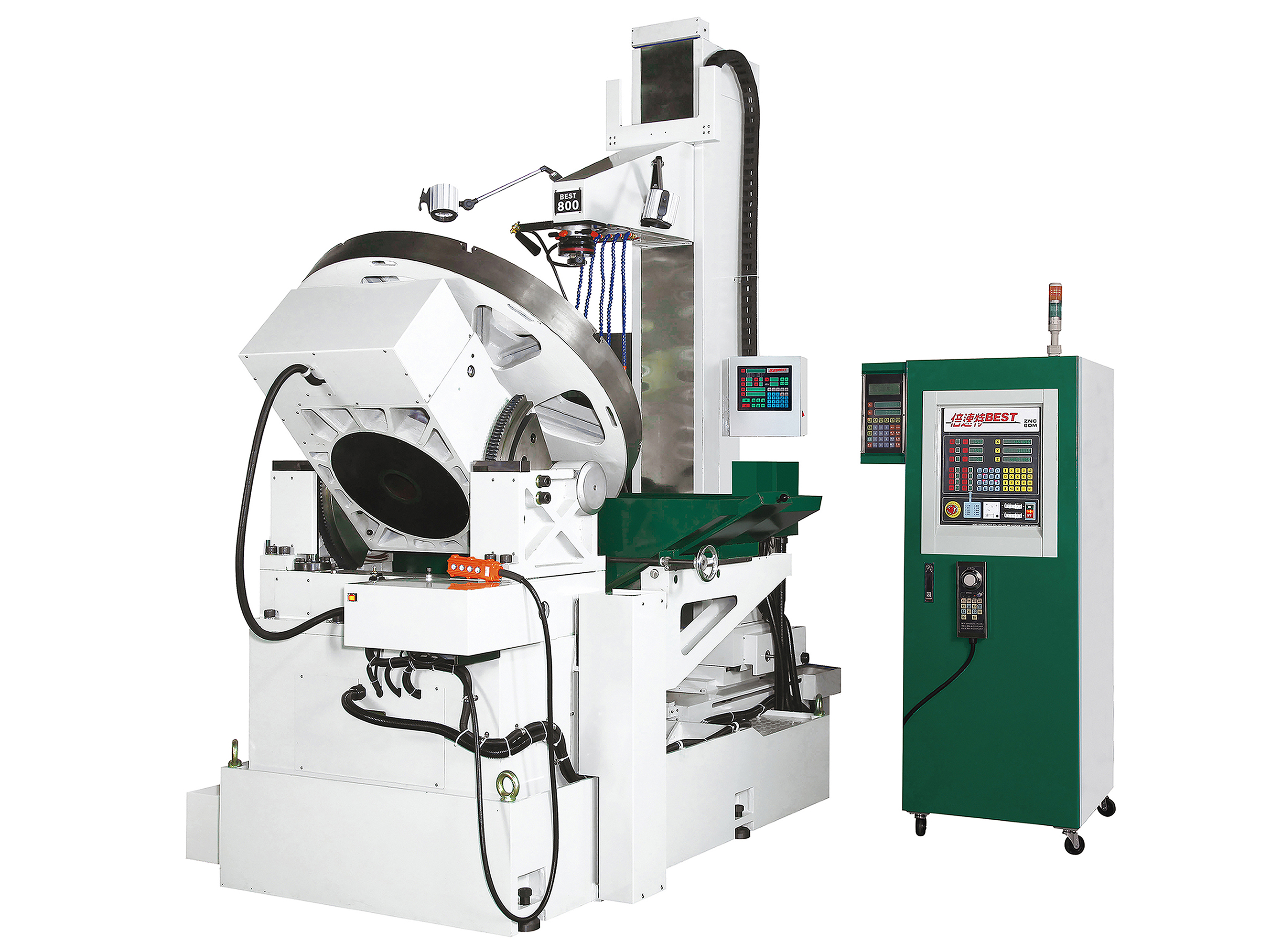

Circular EDM800

1.Specialized EDM for roller engraving.

2.Continuous machining by alternating index and EDM.

3.Axial X, Y displacement system can be automatically positioned.

4.X Axis travels, for adjusting center of mold.

5.Y Axis travels, for slant mold.

6.Z1 Axis travels, for mold size.

7.C Axis controlled by micro computer, positional accuracy 1/1000 degree.

8. The inclination angle of the C axis can be accurately read out by the A-axis.

9.Electrodes can be processed with copper electrodes and stone grinding.
